Java comes with three kinds of scope and we name variables according to the scope they reside in as detailed in the table below. In this lesson we focus on instance variable scope.

Variable Scope Lifetime
staticStatic variables apply to the class as a whole and are declared within the class but outside a method.Exists for as long as the class it belongs to is loaded in the JVM.
See the Static Members lesson for more information.
instanceInstance variables apply to an instance of the class and are declared within the class but outside a method.Exists for as long as the instance of the class it belongs to.
localLocal variables apply to the method they appear in.Exists until the method it is declared in finishes executing.
See the Method Scope lesson for more information.

Declaring Instance Variables Top

in Java we declare variables anywhere within a block of code and instance variables are defined within a class but outside any methods. Instance variables can be declared anywhere within class scope, but by convention they are declared before any methods of the class and we will adhere to this.

Lets return to our simple Cat class we coded earlier in the Defining A Class section of the Class Structure & Syntax lesson.

instance scope diagram

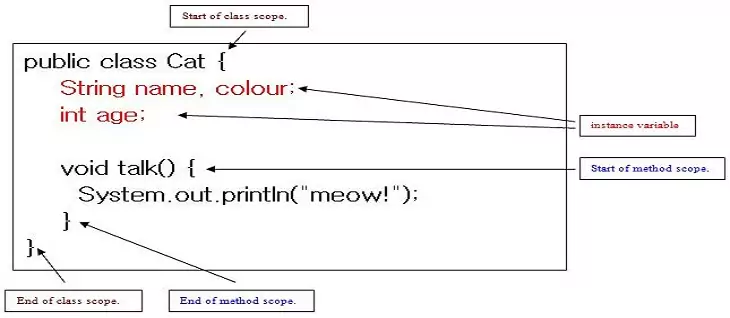

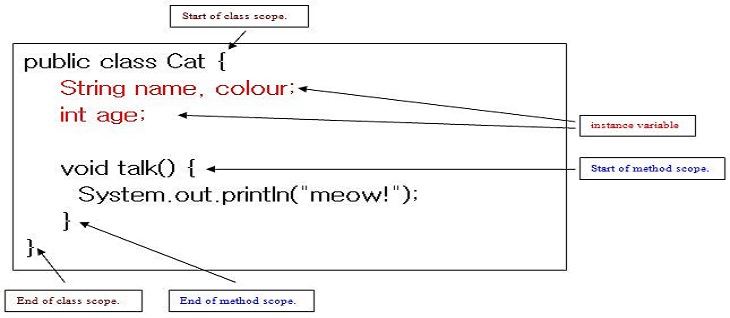

Figure 1. Instance scope diagram.

What is not apparent from the diagram is the difference between instance and local variables. Local variables always need to be initialized before use, instance variables are assigned a default value unless explicitly assigned one.

Instance variables are assigned a default value according to their type:

  • object - null
  • boolean - false
  • char - /u0000
  • integer types (byte, short, int and long) - 0
  • floating-point types (float, double) - 0.0

To prove this lets create an instance of our Cat class and display its instance variables:


package info.java8;
/*
  Test Class3 for Cat
*/
public class TestCat3 {

    public static void main (String[] args) {
        Cat moggy = new Cat();    // Create a Cat instance
        System.out.println("Our " + moggy.colour + " cat called " + moggy.name + " is " + moggy.age);
    }
}

run instance variable default

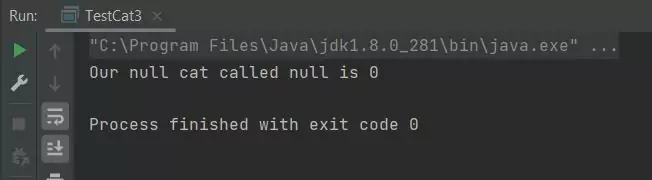

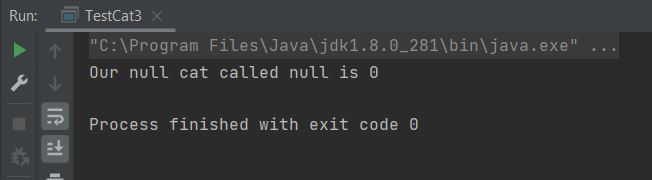

Screenshot 1. Running the TestCat3 class.

The above screenshot shows the output of running our TestCat3 class. We created a Cat instance and displayed the values of its instance variables. The String objects values default to null and the int primitive defaults to 0.

Looking At Object State Top

As mentioned earlier in this section each time we create a new instance of the class, that instance gets its own set of instance variables. The variables are completely unique to each instance and the values held within each instance are known as object state. Objects live on the Heap and as instance variables represents an Object State and so they also reside on the Heap within the appropriate instance of their object type. Lets take a closer look at what this actually means with our simple Cat class. Using the following slide show just press the buttons to step through it.

heap 6

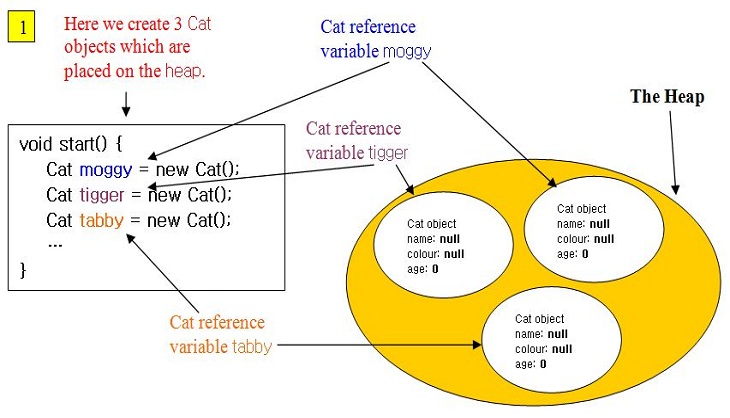

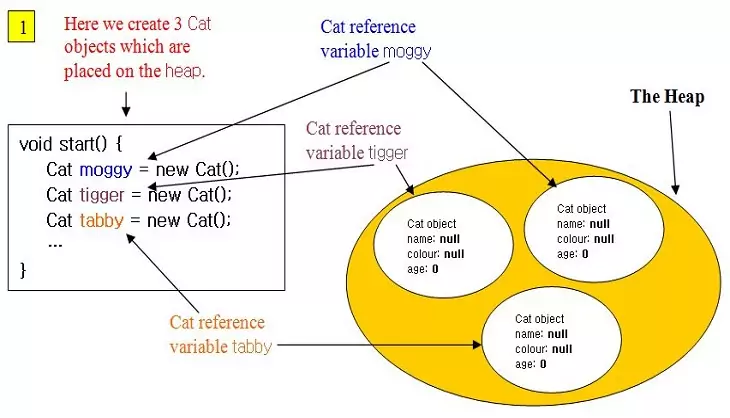

In this slide we create 3 Cat objects and these are placed on the Heap and can be accessed through their reference variables. At the moment all these objects are in their default state.

heap 6

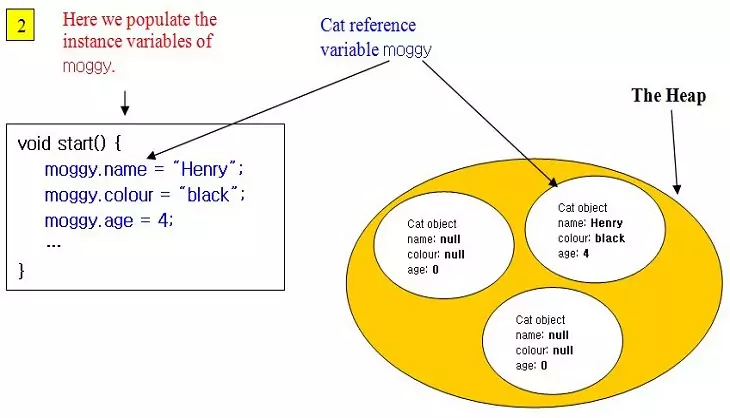

In this slide we assign values to the instance variables of the Cat object with a reference variable of moggy.

heap 8

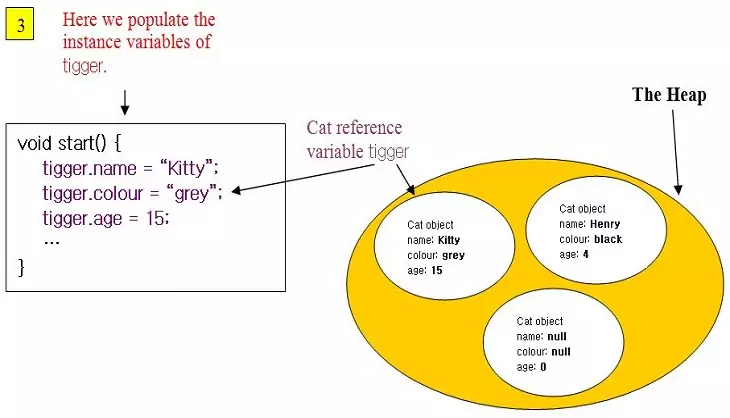

In this slide we assign values to the instance variables of the Cat object with a reference variable of tigger.

heap 9

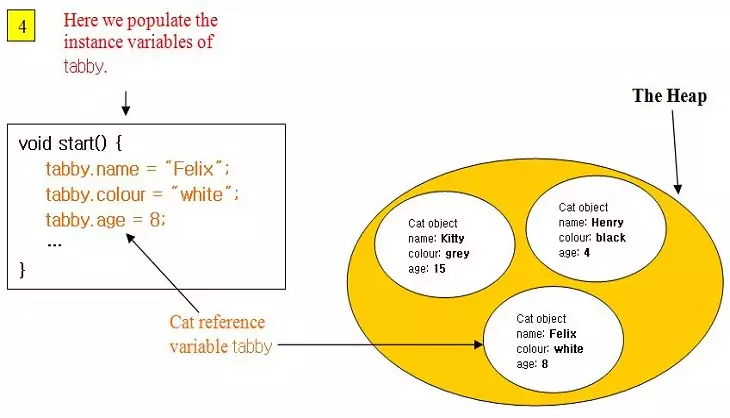

In this slide we assign values to the instance variables of the Cat object with a reference variable of tabby.

Lets look at some code to illustrate the above scenario:


package info.java8;
/*
  Test Class4 for Cat
*/
public class TestCat4 {

    public static void main (String[] args) {
        Cat moggy = new Cat();
        Cat tigger = new Cat();
        Cat tabby = new Cat();
        moggy.name = "Henry";
        moggy.colour = "black";
        moggy.age = 4;
        tigger.name = "Kitty";
        tigger.colour = "grey";
        tigger.age = 15;
        tabby.name = "Felix";
        tabby.colour = "white";
        tabby.age = 8;
        System.out.println("Our " + moggy.colour + " cat called " + moggy.name + " is " + moggy.age);
        System.out.println("Our " + tigger.colour + " cat called " + tigger.name + " is " + tigger.age);
        System.out.println("Our " + tabby.colour + " cat called " + tabby.name + " is " + tabby.age);
    }
}

object state

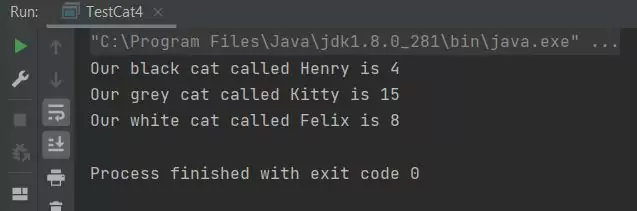

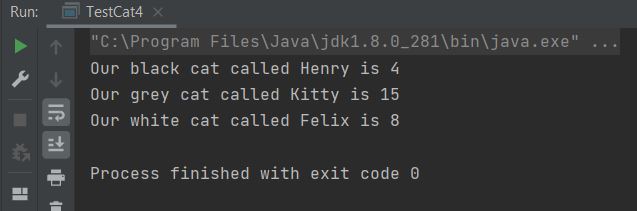

Screenshot 2. Running the TestCat4 class.

The assignments of the reference variables happen as in the slide show and we print out the instance variables for each instance.

Instance Variable Scope Top

In our discussion on the Heap in the last lesson we mentioned that as long as we have a reference to an object then it exists on the Heap. Objects are eligible for removal from the Heap by the garbage collector when their scope ends and there are no live references to them, or they become unreachable, or the reference to the object is set to null. So what does this mean for our instance variables? Well as the instance variables are unique to an instance of their class it means when no reference variables point to that instance it and any instance variables attached to it go out of scope. So the lifetime of instance variables, aka their scope, are implicitly tied to the object they belong to, when the object dies so does its state.

Related Quiz

Objects & Classes Quiz 8 - Instance Variables & Scope

Lesson 8 Complete

This lesson was about instance variables, how to use them and their scope.

What's Next?

In the next lesson we learn about final instance variables.
